Chips production line fryer

Flour mixer

A cylindrical mixer whose function is to mix farina flour + water + salt + starch + calcium + carbonate. Easy to clean. It is equipped with an outlet for the flour to exit after the mixture is to be emptied into the spiral conveyor.
Made of stainless steel 304
Electricity capacity 380/220VAC 50HZ 3.75 Kw
Length 100 cm
Width 90 cm
Height 140 cm
No.-001
Model THV-2024PV-B
Made in Türkiye.

Screw conveyor

It consists of a tank with a capacity of 75 kg. Its task is to receive the flour mixture from the mixer and raise it to the extruder automatically. It is equipped with protection to prevent the worker’s hand from entering the snail, covered with a metal mesh. The spiral conveyor is equipped with a bottom hole for cleaning. Equipped with a magnetic mechanism to pull out mineral impurities, if any, inside the flour.
Made of stainless steel 304
Electricity capacity: 380/220VAC 50HZ 1.25 Kw
Length 250 cm
Width 90 cm
Height 190 cm
No.-002 2024/3/1/
Model THV-2024PV-B
Made in Türkiye

Double helix extruder

The extruder is responsible for shaping the chips and crisps dough in the shape we choose. Production capacity is 200 kg/hour.
Equipped with a feeder snail built into a bucket to feed the extruder with flour
Made of the finest types of heat-treated metal, it has a long life and does not require disassembly for cleaning
Made of stainless steel 304
Electricity capacity: 380/220VAC 50Hz 22.5 Kw
Length 250 cm
Width 100 cm
Height 180 cm
No. 003 2024/3/1/
Model THV-2024PV-B
Made in Türkiye

Puncher

The chips threads are passed into the machine to be passed into the fingerprint cylinder to add an engraving shape and perforate the chips threads to produce various shapes of chips.
Made of stainless steel 304
Electricity capacity: 380/220VAC 50Hz 3.75 Kw
Height 130 cm
Width 100 cm
Height 120 cm
No. 004
Model THV-2024PV-B
Made in Türkiye

Steak cutter

Steak cutter
Its mission is to cut chips in the shape we choose and the length we specify. The length of the chip is controlled by the speed variable inverter.
The slicer produces more than 10 shapes. Integrated with a plastic food wrap belt conveyor and equipped with a cylinder to pull the chips threads and feed them to the knife.
Made of stainless steel 304
Electricity capacity: 380/220VAC 50Hz 3.75 Kw
Height 150 cm
Width 80 cm
Height 120 cm
No. 005
Model THV-2024PV-B
Made in Türkiye.

3D cutter

Its mission is to cut and shape chips into the shape we choose. The speed of the cutter is controlled by the variable speed inverter.
The slicer produces more than 7 shapes.
It is equipped with fingers for straightening the chips threads and preventing them from sticking to each other, and it is equipped with a cylinder for pulling the chips threads and feeding them with knives.
Made of stainless steel 304
Electricity capacity: 380/220VAC 50Hz 3.75 Kw
Height 150 cm
Width 90 cm
Height 120 cm
No. 006
Model THV-2024PV-B
Made in Türkiye.

Conveyor belt for the product

A food grade PVC plastic conveyor line whose mission is to receive chips from the slicer and feed them to the fryer
Equipped with wheels for easy moving and cleaning.
Made of stainless steel 304
Electricity capacity: 380/220VAC 50HZ 1.25 Kw
Length 200 cm
Width 70 cm
Height 140 cm
No. 007
Model THV-2024PV-B
Made in Türkiye

Frying pan

Designed to operate 24 hours a day in a well-studied engineering manner to easily pass the chips into the frying pan.
The fryer is a frying pan in which there is oil. The chips are passed around, dipped, stirred in oil, and transferred to the back of the fryer for a period of time not exceeding 15 seconds, so the chips are cooked.
The chips are gradually lifted onto a mesh conveyor line built with a shaker to remove the oil as a first stage. It is equipped with a fire chamber inside the fryer, easy to clean. It heats the oil using a diesel-powered burner. The fire chamber was completely insulated with a 10 cm thick layer of fiberglass from all directions and the outer body to maintain the safety of the working people, maintain the temperature, keep the oil temperature at the required level, and save diesel.
Made of stainless steel 304
Electricity capacity: 380/220VAC 50HZ 10.5 Kw
Length 450 cm
Width 130 cm
Height 200 cm
No. 008
Model THV-2024PV-B
Made in Türkiye.

Oil drying vibrator

Its mission is to dry the oil from the chips. It is a vibrating motor conveyor that works in four stages gradually to filter the oil from the chips.
Made of stainless steel 304
Electricity capacity: 380/220VAC 50Hz 3.75 Kw
Height 270 cm
Width 100 cm
Height 110 cm
No. 009
Model THV-2024PV-B
Made in Türkiye

Cooling conveyor line

A mesh conveyor line whose mission is to cool and rest the chips before entering the flavoring stage and transporting them to the marinade.
Made of stainless steel 304
Electricity capacity: 380/220VAC 50HZ 1.25 Kw
Length 300 cm
Width 70 cm
Height 100 cm
No. 010
Model THV-2024PV-B
Made in Türkiye

Flavoring device (Spice)

It is a tank equipped with a device for mixing and stirring the flavor powder. It is equipped with a horizontal spiral for feeding. It is equipped with an inverter device to control the amount of flavor flowing to the spray vibrator with precise adjustment and calibration. It is equipped with an electronic circuit that is designed in a way that allows it to distribute the flavor powder perfectly and coat the chips.
Made of food grade stainless steel 304
Electricity capacity: 380/220VAC 50Hz 3.75 Kw
Length 300 cm
Width 70 cm
Height 100 cm
No. 011
Model THV-2024PV-B
Made in Türkiye

Spiced

It is a cylinder whose speed is electronically controlled by an inverter. The tines or serrations in the seasoning prevent the flavor from gathering and clumping to obtain the best flavor result by rotating the flakes in a slow and even manner while spraying the flavor. The seasoning is calibrated to control how long the chips sit. The vaccination roller is equipped with a mechanism to expel unwanted impurities and very small chips that may result from rotation.
Made of stainless steel 304
Electricity capacity: 380/220 VAC 50 Hz 3.75 kW
Length 300 cm
Width 120 cm
Height 150 cm
No. 012
Model THV-2024PV-B
Made in Türkiye

Packing machine conveyor line

A fully automatic bucket conveyor line whose mission is to receive the product from the flavor stages and transport it and distribute it regularly to 5 filling and packaging machines with a conveyor belt structure + (STAINLESS STEEL 304) (PVC letter Z) with a tank, a shaker, a control circuit and electronic sensors to feed the machine with the product automatically to preserve the potato chips slices. From breakage
Made of stainless steel 304
Electricity capacity 380/220VAC 50HZ 3.75 Kw
Length 10 cm
Width 100 cm
Height 420 cm
No. 013
Model THV-2024PV-Z
Turkish industry

CONTINUOUS SYSTEM GRAVIMETRIC PACKAGING MACHINES 3PCS

It was manufactured using the latest international technologies to meet customers’ needs for command and control systems and sensors and optical sensors in manufacturing this machine to provide high speed and continuity of operation 24 hours a day.
-Filling and wrapping machine for all types of chips, seeds, and nuts
-The entire working system depends on servo motors
-Production capacity according to weight
-An advanced, fast-response PLC control system from DELTA
-10 inch electronic touch screen from DELTA
-The machine is equipped with a stepper motor to move the roller carrier ladder automatically, controlled from the screen
-The machine is equipped with a stepper motor to compensate for the pull of the roll, in addition to alerting the operator when the roll is finished.
-The machine is equipped with safety sensors for the safety of the operator.
-The machine is equipped with a daily and comprehensive production and monitoring counter.
-Type of roller used for the machine (embedded cellophane)
-Conveyor belt for ready-made packages
-Date printer
-Smart weight set
-Platform for installing the weight device
Made of .304 stainless steel
Electricity capacity 380/220VAC 50HZ 15.25 Kw
Height 230 cm
Width 130 cm
Height 200 cm
No. 010
Model THV-2024PV-Z
Turkish industry

basic information

We, Al-Huda Company, bear full responsibility for any defect in the specifications and terms of the contract. Industrial testing. Operating and testing the line on the territory of Al-Huda Company, Türkiye, Gaziantep.
Shipping insurance
Turkish industry with German technology spanning more than twenty years
Our industries hold international quality certificates
Al-Huda brings generational experience in the world of industry, contemporary creativity and development towards the future
The length of the entire line is 28 meters - width 3 meters
The line requires an area of ​​300 square meters
Different production capacities are available
Do not hesitate to ask any questions, Al-Huda is your ideal choice
To add any amendment, please write to us to provide you with complete information in detail.
Click on the WhatsApp link to be provided with all the information. Thank you for your cooperation

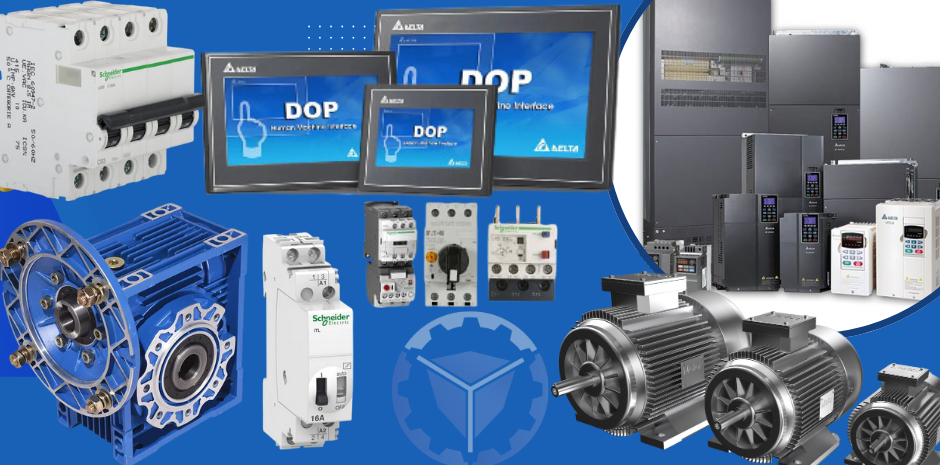

Control Panel

• Cutters and contactors brand SCHNEIDER
• 10 inch DELTA control screen
• Inverters DELTA
• Engines, the Turkish company GAMAK, with a German franchise
• Gearboxes of the famous Turkish brand YILMAZ

THE FINANCIAL COST OF THE LINE

a

parts

1 - Flour mixer
2 - spiral feeder
3 - The extruder (explosion and shaping head) with the automatic feeding device
4 - 3D cutter (2)
5- Itinerary conveying the product from the extruder to the fryer
6 - frying pan
7 - oil-drying shaker
8 - Drying itinerary
9- Flavoring device with vibrating system
10 - Mutabbal
11- Number shapes and templates

production line

flour mixer
Drum mixer made of food grade stainless steel 304
Its function is to mix flour + water + other additives, easy to clean, 3 horsepower

spiral feeder

Composed of a tank capacity / 75 kg /
Made of stainless steel / 304 /
Thickness / mm 2 / Provided with a bottom hole for cleaning Works to feed materials to the extruder automatically Equipped with mechanical protection to prevent the worker's hand from entering the mixer (metal grille)
Equipped with a magnetic mechanism to pull out metallic impurities, if any, inside the atom


Dual Helix Extruder

The extruder, which is responsible for forming the bundt dough, the production capacity from 200 kg to 250 kg per hour, the main engine is 22 kW, and it is equipped with a snail feeding the product.

Made of food grade 304 stainless steel, the motor is 7.5 watts

Made of the finest heat-treated metals (long life and does not require disassembly for the cleaning process


3D Cutter (2)

Molds and molding segments / 5 / fezzes or steaks or slices or a flower or fish A device for forming and cutting 3D triangles / fezzes /

product conveyor belt
Conveyor belt made of food grade stainless steel /304/
Equipped with wheels for easy movement and cleaning

The conveyor belt is made of PVC or food plastic to transfer materials from the extruder to the fryer
Equipped with cleaning holes
Equipped with automatic cleaning brushes

Fryer
Made of chrome (304) and the body is chrome 8x8 thickness M 3

Length 350 cm Height 260 cm

Width CM 300 Motorized 3,7 kw

The capacity of the fryer is 200 liters. The fryer oil works on electricity. It works on 24 heaters, diesel or gas, so that the oil is heated to the required degree.

Italian heaters, frying pan thickness 3 M, sink, frying vessel 3 M, and mat holder 8 M, all screws chrome

Equipped with a pump of 2 Turkish-brand showerheads, a compensation tank and a vacuum tank, each with a capacity of 300 liters of oil, and there are 2 heaters for each one, the thickness of the tank is 2 M, the bases are 3 inches, thickness is 3 mm, and the filter device is 5 mm thick, two stages, coarse and fine

The filters are changed if any of them are damaged, the frying mat width CM 50 with a soft braid so that no type of chips enters, and chrome buckets and they are also equipped with spark-screw lifters to carry more than 1500 kg

Equipped with a 120 cm long front line, and it has a shaking system to dry the oil from the chips, and the oil is returned to the fryer, the bearings and the dashboard are chrome 304.


Oil drying shaker

Its function is to dry and remove oil by high-frequency vibration to efficiently and effectively remove excess oil from french fries

It also works to prevent fried potato chips from sticking to each other and prevent them from cracking, a four-stage kinetic line that gradually filters the oil, equipped with a 3 HP motor
Thickness MM 5
Made of food grade stainless steel 304
3 M length
CM 100 width
Height 130 cm

Drying itinerary
Inspection process The chips are checked to ensure the quality of the product and to remove unwanted black dots before entering the flavoring and packaging stage
Equipped with a 3 hp engine

Made of food grade stainless steel 304
4 M length
CM 100 Width
Height CM 120

spiced
It is a cylinder
The speed of the seasoning is controlled electronically via an inverter that is equipped with an advanced, adjustable flavor atomizer

Wheels for easy stirring and cleaning, the process of the scales in the seasoning is made to prevent the flavor from gathering and clumping, and to get the best flavoring result by slowly and homogeneously rotating the chips while spraying the flavor.

The seasoning can be calibrated to control the time of passage of the chips inside it, and the grafting cylinder is equipped with a mechanism to expel the impurities and the very small unwanted chips that may have been caused by rotation
Made of food grade stainless steel 304
Length 3 M
Height 150 cm
Width CM 130
